Victaulic : Mechanical Pipe Joining & Fire Protection Solutions

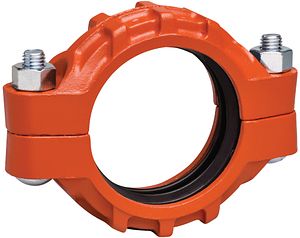

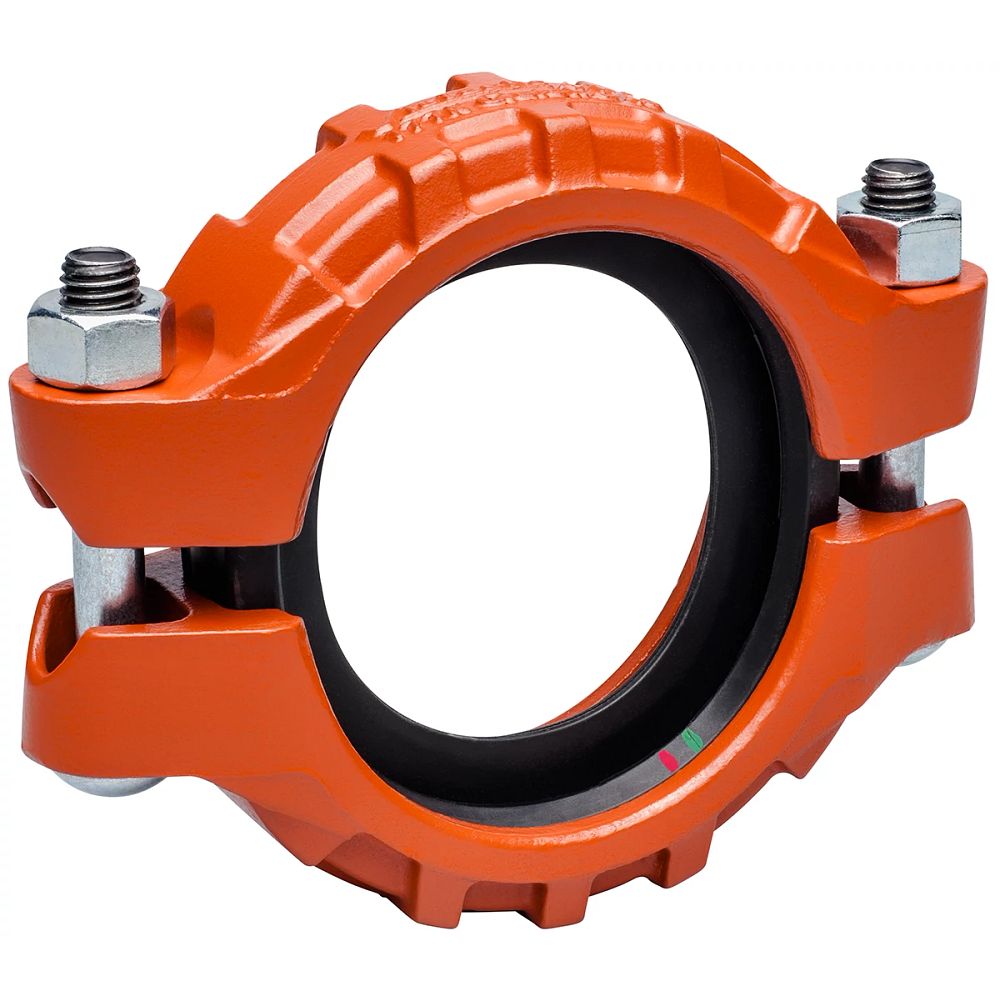

- Flexible pipe joint which allows for expansion, contraction and deflection
- Sizes from ¾ – 24" | DN20 – DN600
- Pressures up to 1000 psi | 6895 kPa | 69 bar
- For sizes 14 – 78" | DN350 – DN1950

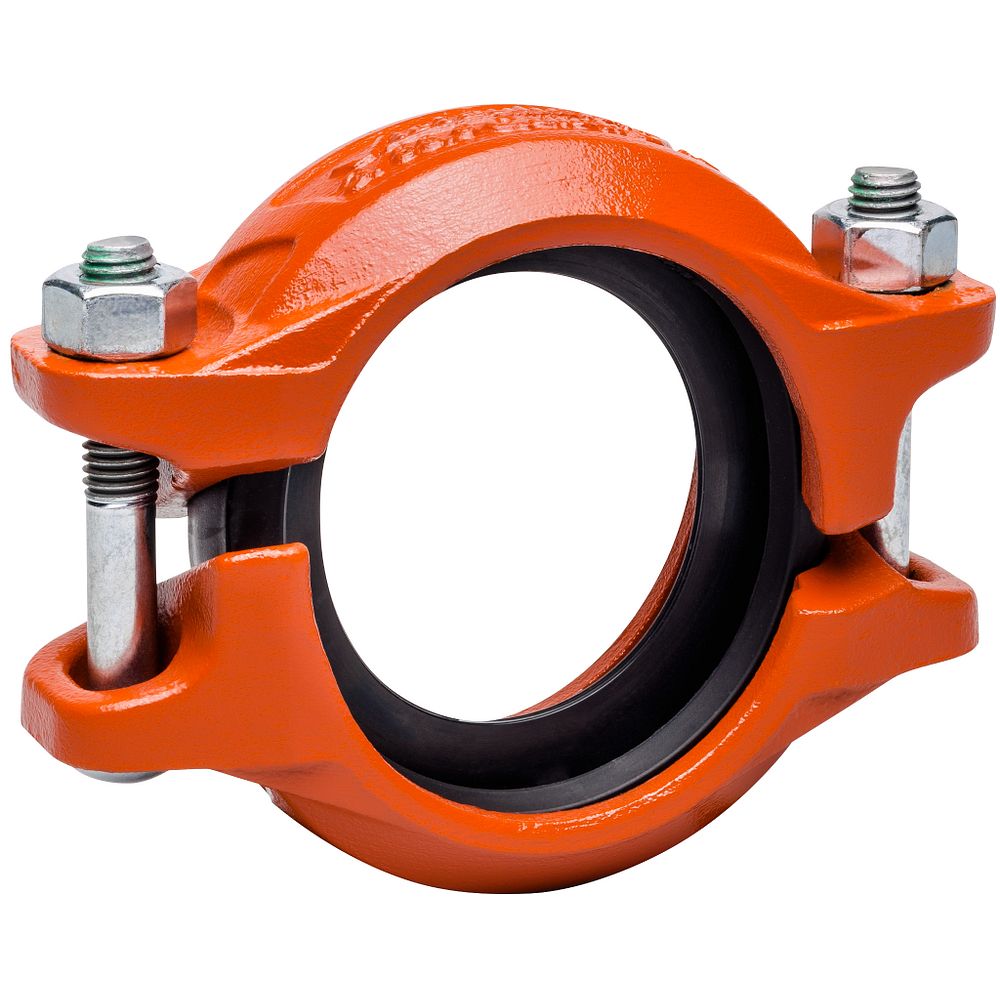

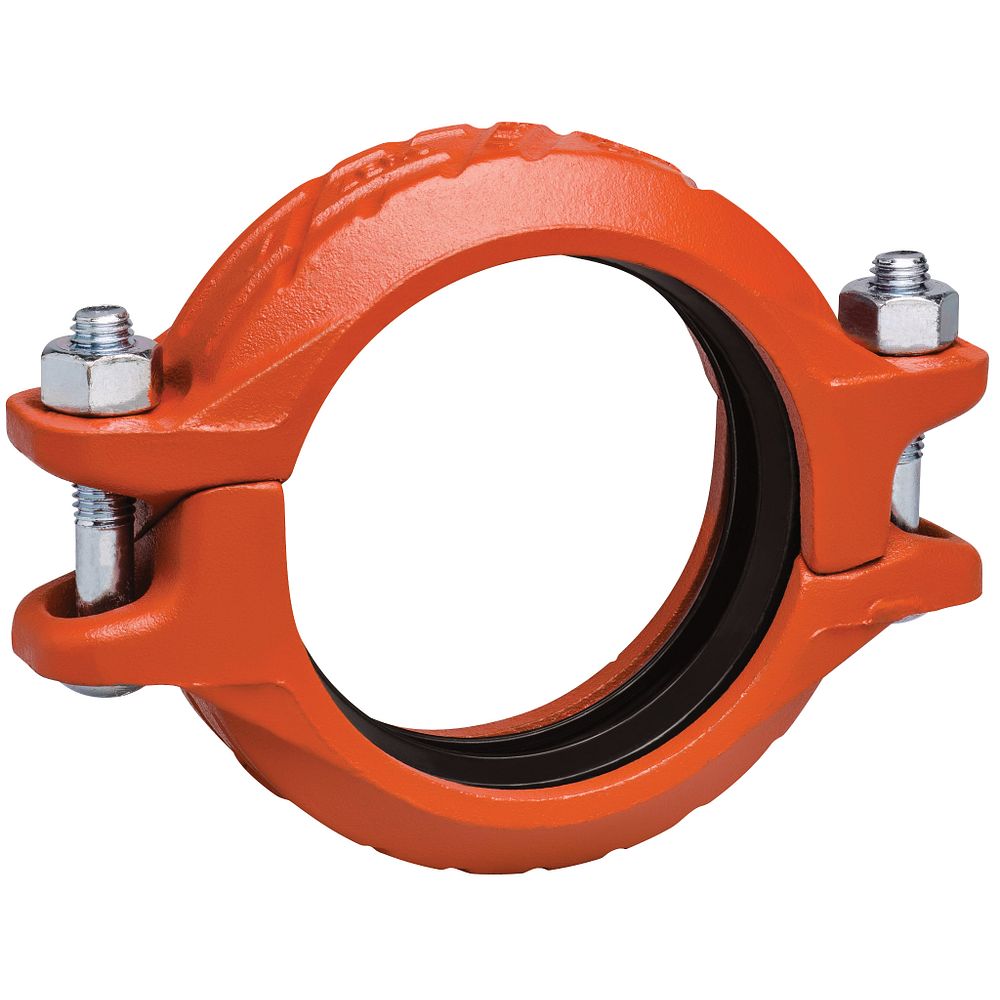

- Angled bolt pad housing design provides rigidity
- Sizes from 2 – 12" | DN50 – DN300
- Pressures up to 750 psi | 5171 kPa | 52 bar
- Flexible pipe joint which allows for expansion, contraction and deflection
- Sizes from 2 – 8" | DN50 – DN200
- Pressures up to 1000 psi | 6895 kPa | 69 bar

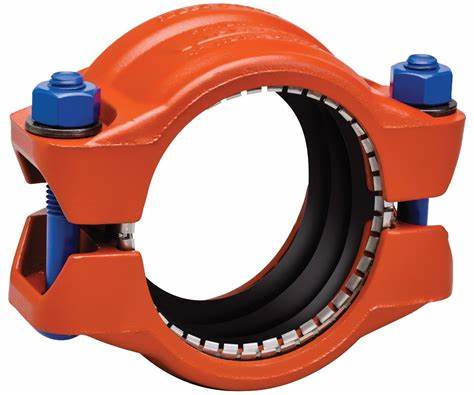

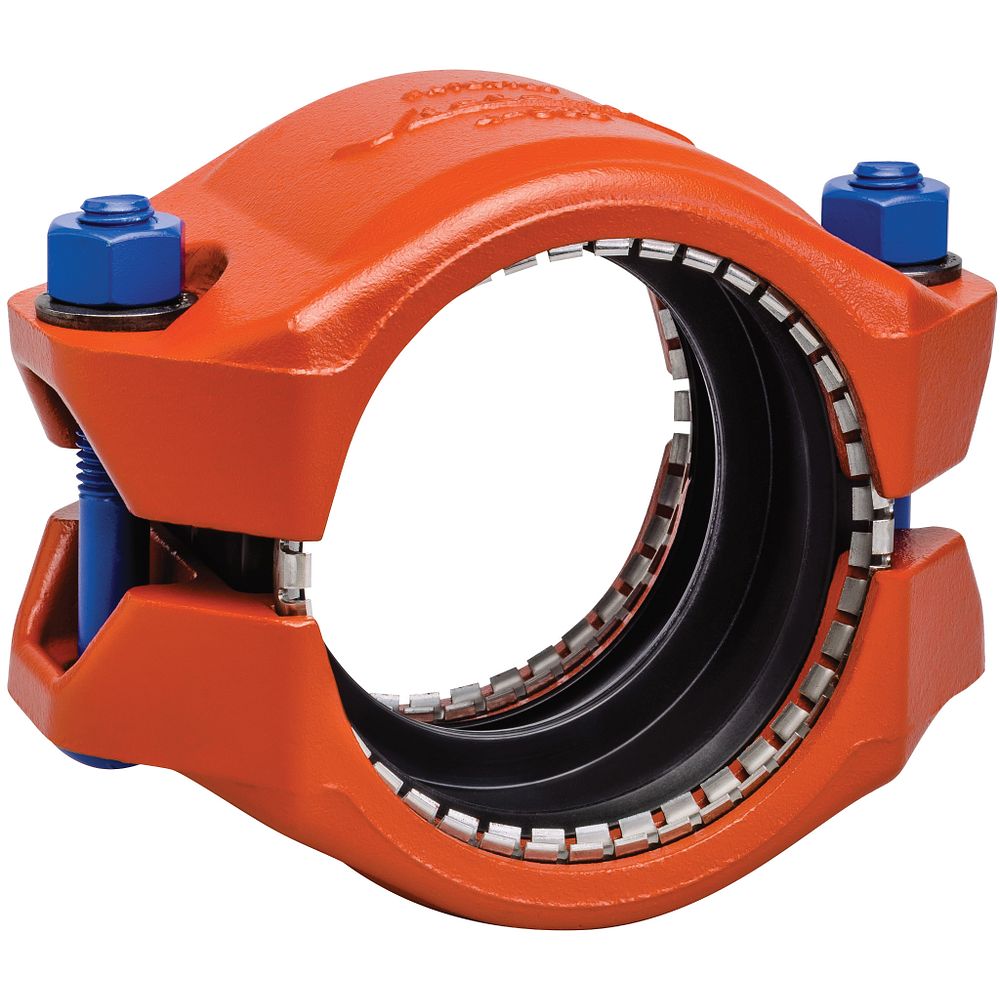

- Designed for plain end HDPE pipe (SDR 7 – SDR 26)
- Sizes from 2 – 14" IPS and 63 – 355 mm ISO
- Pressure rating meets or exceeds the performance capabilities of the pipe
- Designed to provide a single transition from plain end HDPE pipe (SDR 7 – SDR 26) to grooved steel sized piping system components
- Sizes from 2 – 14" IPS HDPE to 2 – 14" | DN50 – DN350 IPS grooved steel
- Pressure rating meets or exceeds the performance capability of the pipe
- Angled bolt pad housing design provides rigidity
- Sizes from 1 – 12" | DN25 – DN300
- Pressures up to 750 psi | 5171 kPa | 52 bar
- For sizes 14 – 50" | DN350 – DN1250
- Intended for backfill and flush water diversion in backfill mining operations
- May be operated under pressure to dump backfill in the event of a blockage
- Stainless steel wetted surfaces
- Manual, hydraulic, pneumatic, and electric actuation available
- Available in 4 – 8" | DN100 – DN200
- Pressures up to 1500 psi | 10342 kPa | 103 bar
- Designed to provide a rugged mechanical joint for roll grooved stainless steel systems
- Optional super duplex stainless steel housing
- Sizes from ¾ – 6″ | DN20 – DN150
- Pressures up to 1200 psi | 8274 kPa | 83 bar

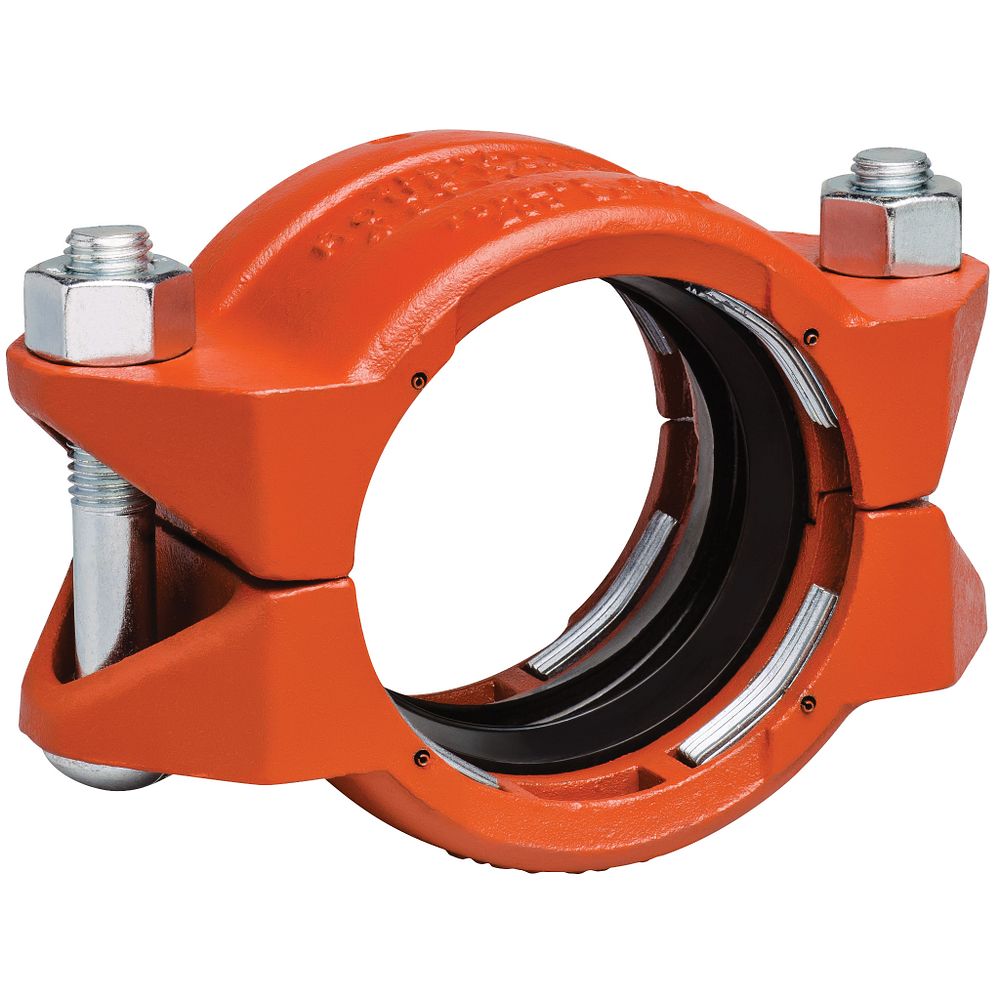

- Grips to provide a strong component for joining plain and beveled end pipe and fittings
- Not designed for use with plastic pipe
- Sizes from 1 – 18″ | DN25 – DN450
- Pressures up to 750 psi | 5171 kPa | 52 bar

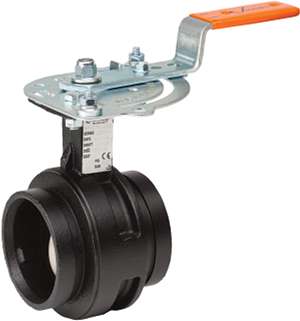

- Designed for bi-directional, dead-end services to full working pressure
- Available without handle, with gear operator, with lever lock handle and memory stop or with 10-position handle and memory stop
- Sizes from 2 – 12″ |DN50 – DN300
- Pressures up to 300 psi | 2068 kPa | 21 bar

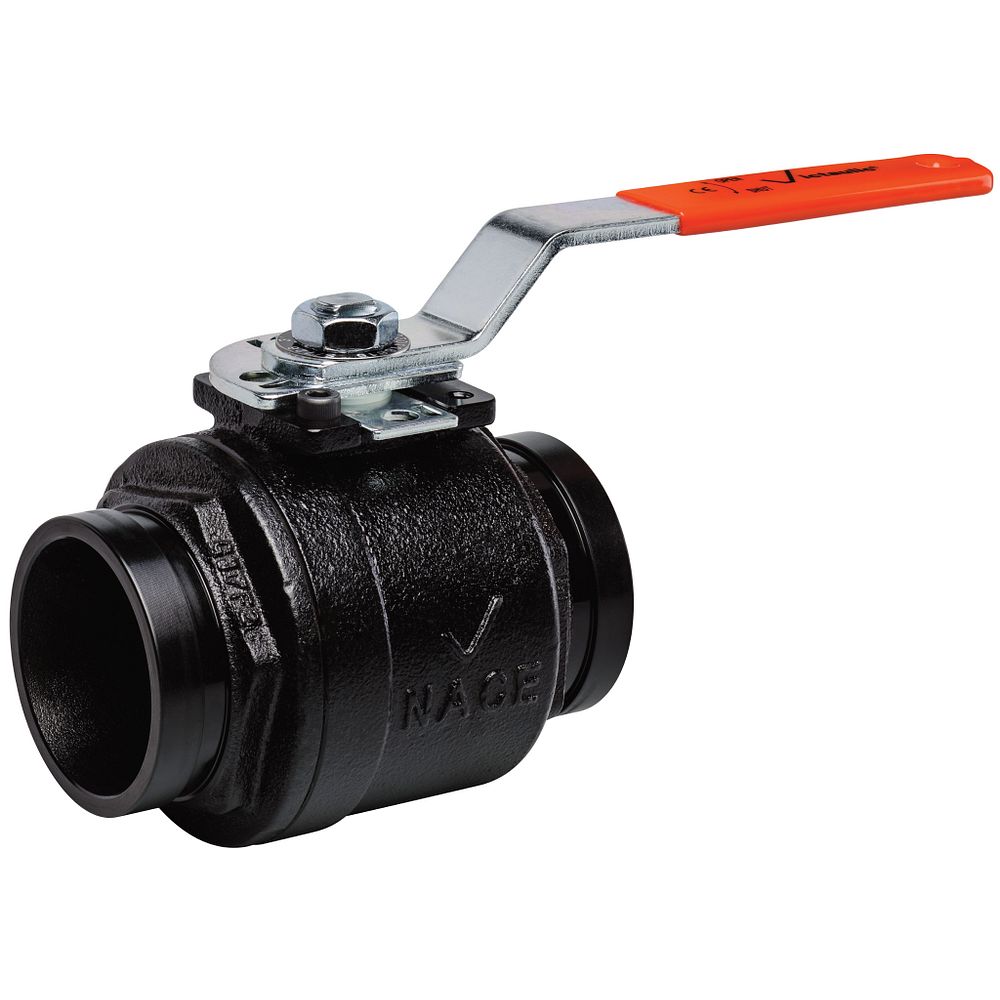

- High pressure standard port ball valve with grooved ends
- Available without handle, with a lever operator or a gear operator
- Sizes from 1½ – 6″ | 40 – 150 mm
- Pressures up to 1000 psi | 6895 kPa | 69 bar
- 3 – 12"/DN80 – DN300
- Rated from full vacuum (29" of Hg/33.4 kPa) to 150psi/1035 kPa/10 bar for unidirectional services

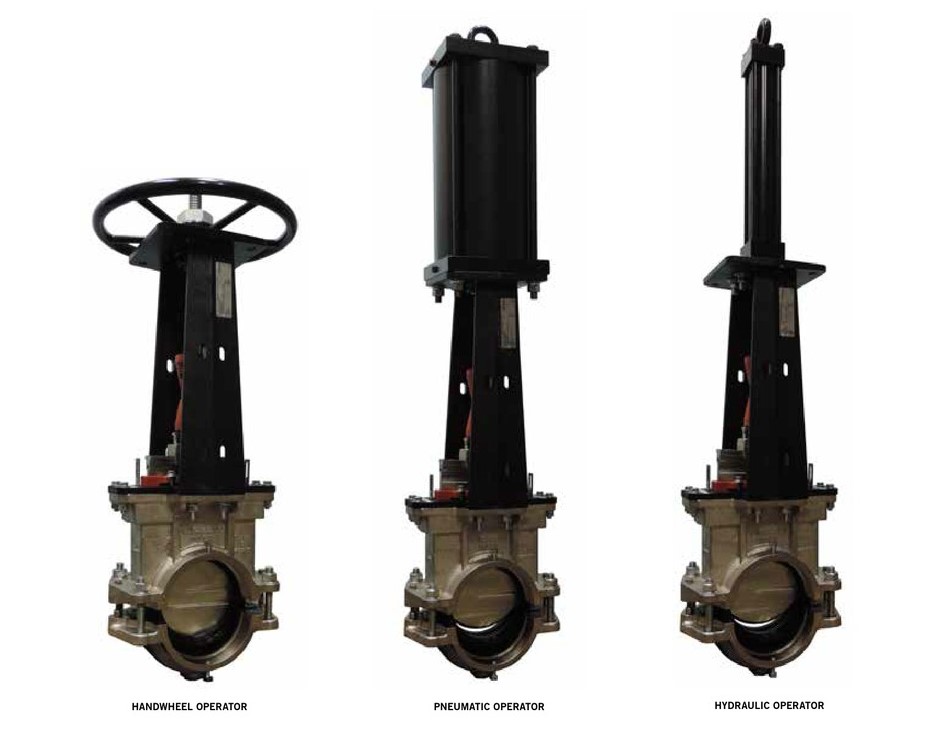

- Designed for fluid lines containing solids and abrasive material
- Intended for use in on-off service (no throttling)
- Offers shutoff isolation without expelling media from the bottom of the valve
- Knife, seat and packing can be replaced without removing valve from pipeline
- Features a unidirectional polyurethane seat
- Lower housing includes a flush port for cleaning out the valve
- Hand wheel (3 – 8"/DN80 – DN200)
- Bevel gear (10 – 12"/DN250 – DN300)
- Pneumatic cylinder
- Hydraulic cylinder
- Multi-turn electric actuator
- Joins OGS Grooved Carbon Steel and Stainless Steel pipe
- Flexible sprinkler solution for quick, simplified installation
- One-piece design with single field connection – no threading or cutting
- Eliminates equivalent length hydraulic calculations
- Hose lengths: 56″ (1422mm) and 68″ (1727mm)
- UL-Listed and FM-Approved
- K-Factor: 5.6
- Response types: Quick and Standard
- Award-winning design – CSE 2024 Silver Award (Safety & Security category)

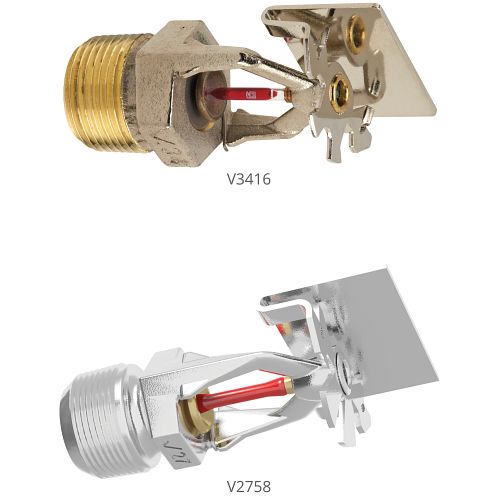

- Ideal for retrofit projects and tight ceiling spaces
- Engineered to provide larger coverage per head – reduces number of sprinklers needed
- Available in pendent, sidewall, concealed, upright styles
- K-Factor range: 5.6 to 14.0
- Designed for use in warehouses, commercial, and industrial spaces
- Maintains optimal hydraulic performance across wide spacing
- Models include:
o FL ECLH (Pendent): K 5.6, 8.0, 11.2, 14.0
o FL ECLH/SW (Horizontal Sidewall): K 5.6, 8.0
o FL ECLH/SWDC (Concealed Sidewall): K 5.6, 8.0
o FL ECLH/C (Concealed Pendent): K 5.6, 8.0, 11.2
o FL ECOH (Upright/Pendent): K 11.2, 14.0
